3D Laser Marker

3D Laser Marker


Brand Name:
LYUSTEC
Product Name:
3D Laser Marker


Professional custom             Lifelong maintenance

One year warranty                Free proofing

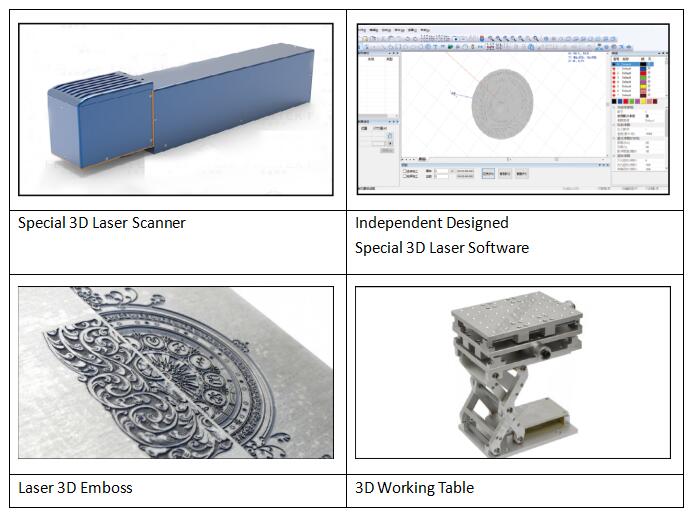

3D laser marker adopts imported core components, it is equipped with high-speed, high precision 3D galvo scanner, and our self-developed 3D specified software and control system. These high-quality configurations ensure the system can make ultra-fine processing on any curved surface parts.

The 3D laser marker will not deviate the focal point when working, it can real-time trace the deep-curved focuses. This makes the machines’ efficiency and performance much better than the traditional 2D fiber laser marker. It totally breaks the traditional 2D marking model. The machine open up a new mode of 3D marking on oblique planes, segment gaps, cylinders, circular cones, spherical surfaces and extruded surfaces.

The 3D laser marker perfectly realizes laser marking on work-pieces exactly the same as graphics, effectively avoiding deformation like stretch or slope. It makes the engraved patterns more closed to the original graphics, even the border can be marked perfectly, and the marking on each place of work-piece is very even and clear. The software of the 3D laser marker is powerful, it can import various kinds of graphics format of mainstream 3D design software. The software itself can edit some simple 3D graphics, and it has the function of transforming 2D graphics into 3D ones, the operation is very easy. The machine full realizes the real 3D laser marking, it lead a new era of laser processing.

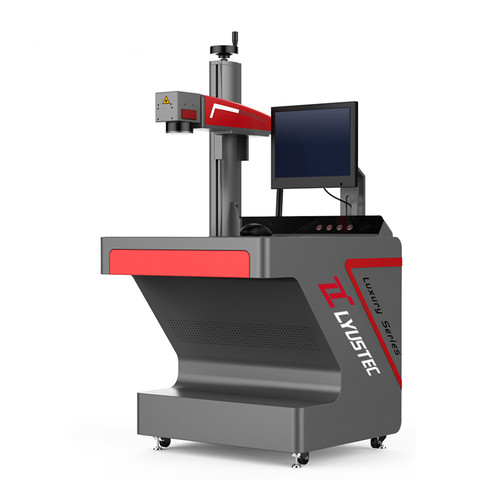

3D laser marker

3D laser marker are mostly used in tools, appliances, accessories and other industries, it can perform 3D markings on inclined surfaces, levels, cylinders, cones, spheres, and stretched curved surfaces. The 3D laser marker is powerful and easy to operate. It can perfectly present the target graphics and achieve better process results.


Applicable Material

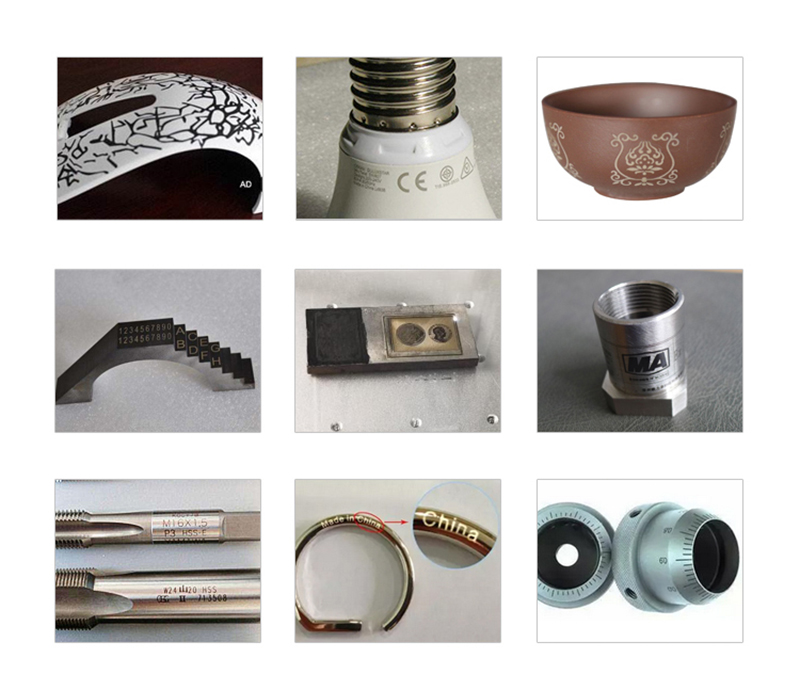

It is suitable for flat, curved surface, high and low surface, bevel, irregular surface metal and non-metal materials marking,such as PVC, rubber, plastic, wood products,  iron, stainless steel, aluminum magnesium alloy, zinc alloy, copper, nickel plating, zinc plating, aluminum oxide, gold, silver high reflective materials, etc.

Applicable Industry
It is usually used in automobile industry, medical equipment manufacturing, extrusion processing, plastic processing, packaging industry, food and beverage industry, mobile phone button, Plastic light key, electronic components, integrated circuit (IC), electrical equipment, communication products, sanitary ware, tool accessories, cutlery, glasses and clock watches, jewelry, luggage buckle, cooking utensils, stainless steel products and other industrial Part marking application (serial number marking, barcode, QR code).
3D laser marking machine
Laser Type CO2 Lasers,Fiber Lasers,UV Lasers,Green Laser
Wavelength 10.6um/9.3um/1064nm/355nm/532nm
Processing Area 3D: 100*100*40MM, 200*200*80MM  (Optional)
2D: 300*300MM, 400*400MM, 600*600MM (Optional)
3D = 3 Dimensional, U = UV Lasers, G=Green Laser, C = Co2 Lasers, F = Fiber Lasers   Customized Specification is Available
Frequency Range 20-200Khz
Laser Source Lifetime ≤100000h
Etching Speed <8000MM/S
Repetition Precision ±0.01MM
Min. Line Width 0.001MM
Working Style XYZ 3D System
Cooling Mode Air,Water Cooling
Graphic Formats Supported PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Power Source AC 110/220V±10%, 50/60Hz
Work Environment Temp: 10~40 ℃,Humidity : 5 ~80 %,Clean, Less Dust
