CO2 Laser Marker C3100

CO2 Laser Marker C3100


Brand Name:
LYUSTEC
Product Name:
CO2 Laser Marker


Professional custom             Lifelong maintenance

One year warranty                Free proofing


The CO2 Laser Marker is a new generation of laser marking system.The laser system adopts the industrial standardization module design. RF series are fitted with full set of imported metal sealed radiation frequency Co2 laser, and equipped with high speed scanning galvanometer and extending focusing system. The machine also has high stability and anti-intervention industrial computer system.It can work on a continuous 24 working hours in high stability, high precision, and high speed.

Advantage:

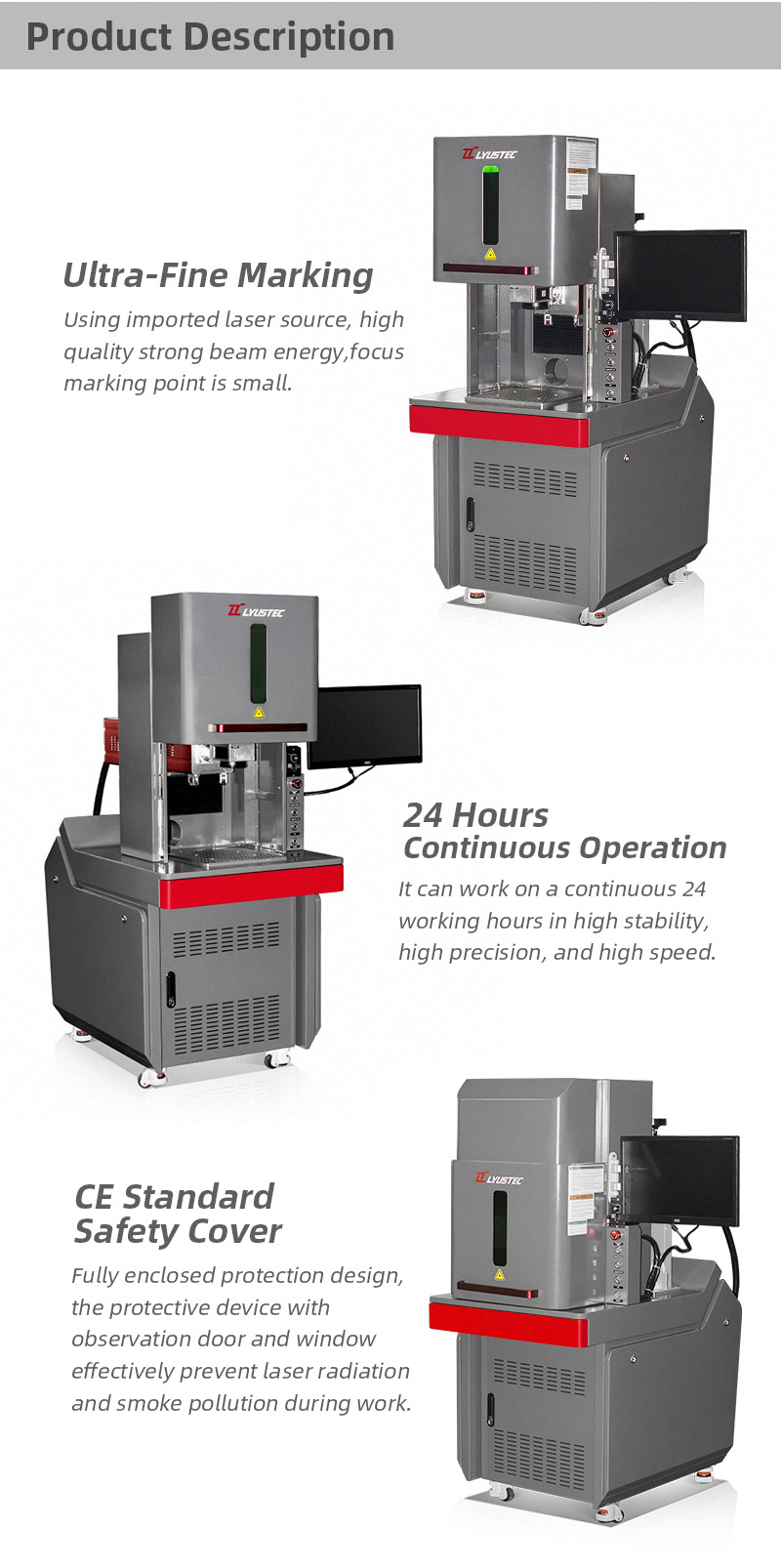

•Using imported laser source, high quality strong beam energy,focus marking point is small, ultra-fine marking.
•Small heat affected area. Prevent material deformation, damaged or burnt. High rate of final products.

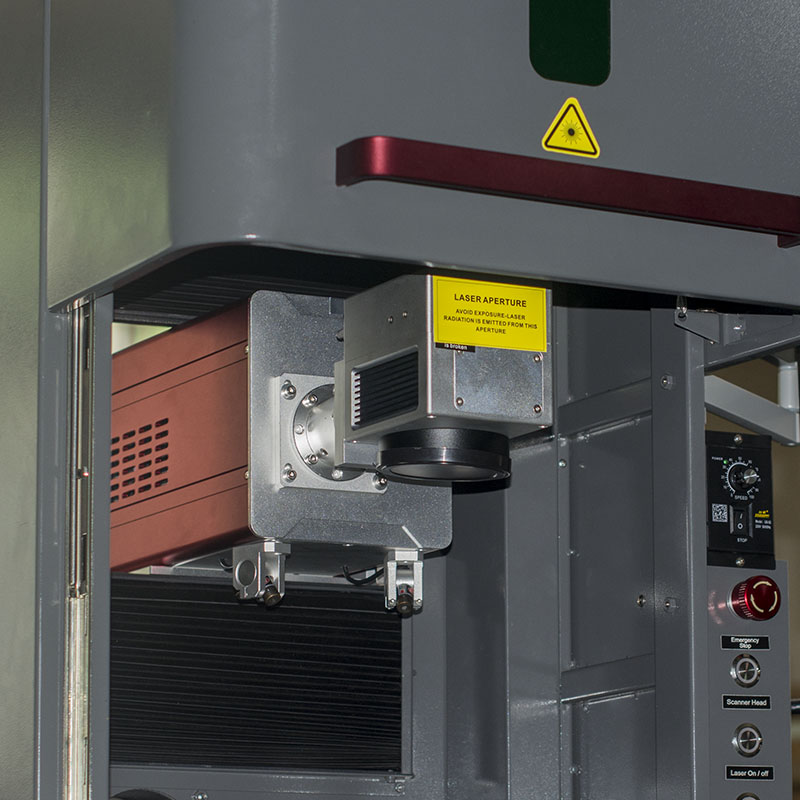

•Using digital galvanometers, lower drift, higher positioning speed, higher performance and higher precision.
•The overall design meets CE requirements.Wide range of applicable materials.
•Fully enclosed protection design, the protective device with observation door and window effectively prevent laser radiation and smoke pollution during work.

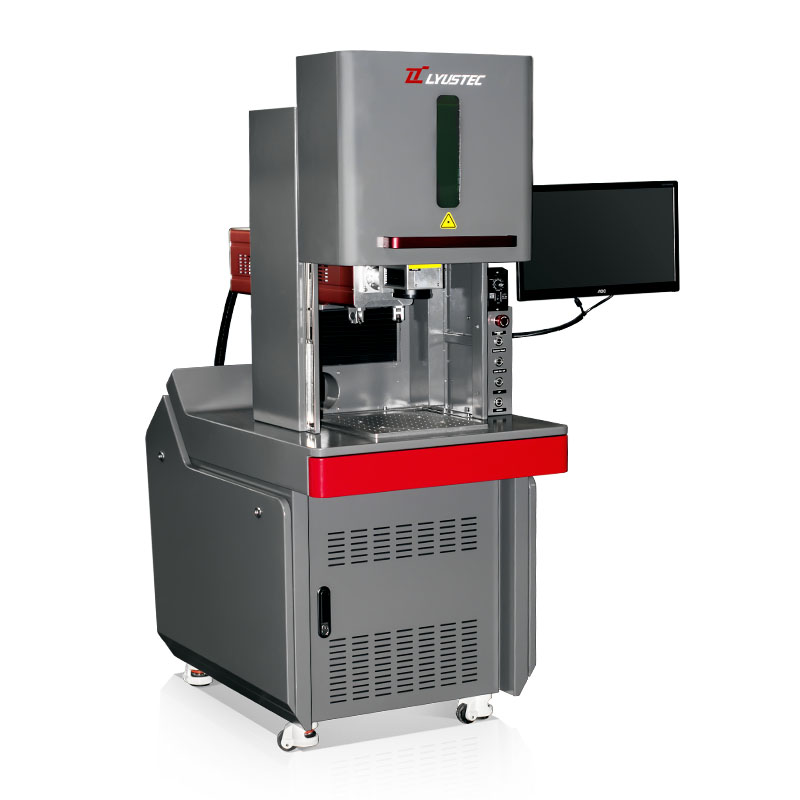

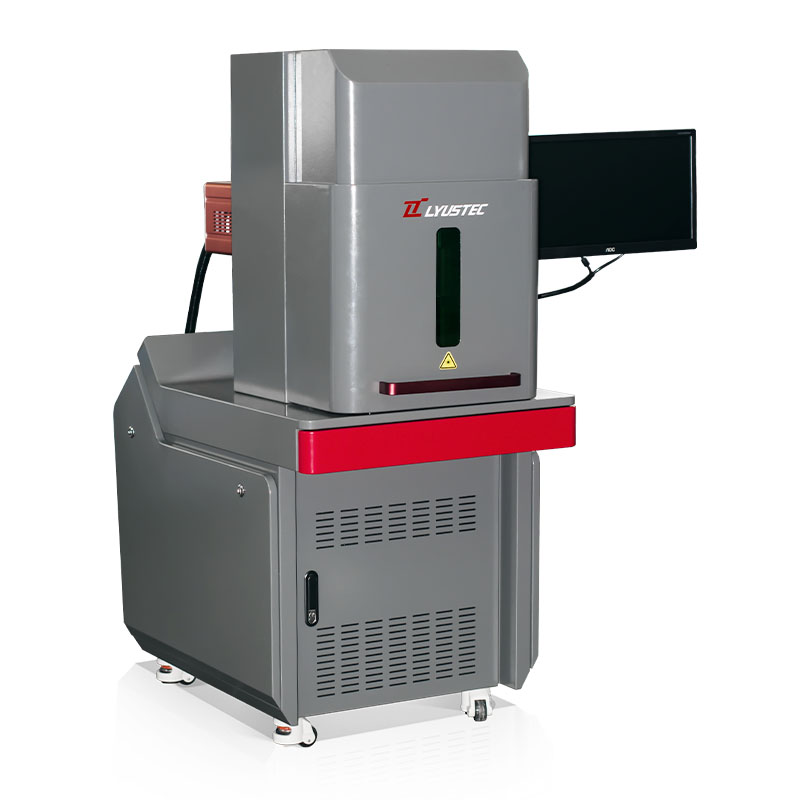

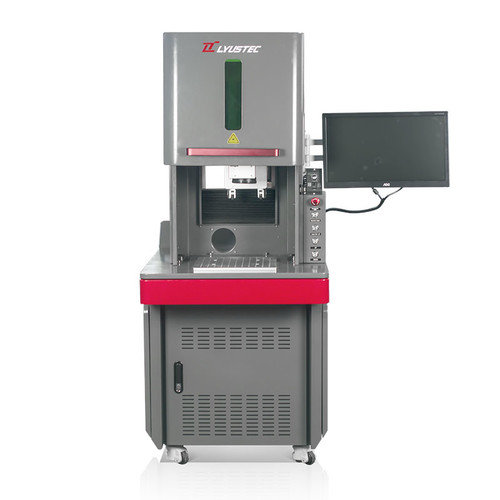

CO2 Laser Marker
CO2 Laser Marker
CO2 Laser Marker
Applicable Material :
Co2 laser marking machine can mark a variety of non-metallic materials and some metal products, such as bamboo products, wood, paper, ABS, PVC, epoxy resin, acrylic, leather, glass, building ceramics, rubber and so on.

Applicable Industry:
The machine widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking.




Product Series

FastMarker C series

Brand Name

LYUSTEC

Laser Type

CO2 lasers

Laser Power

10-300watts

Work Area

70 x 70 up to 300 x 300 mm

Max. Workpiece Height

100 – 500 mm

ENGRAVE   ●       CUT    ●          MARK    ●        WELD   ○
