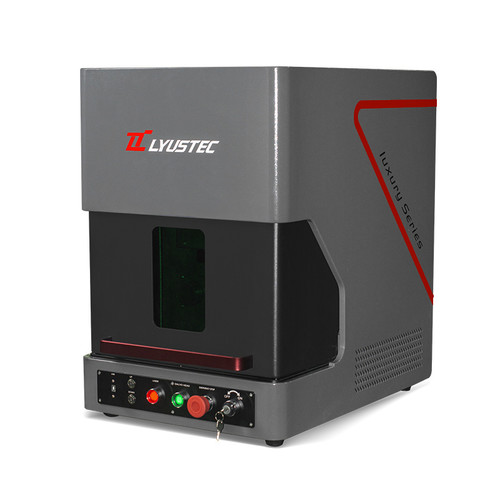

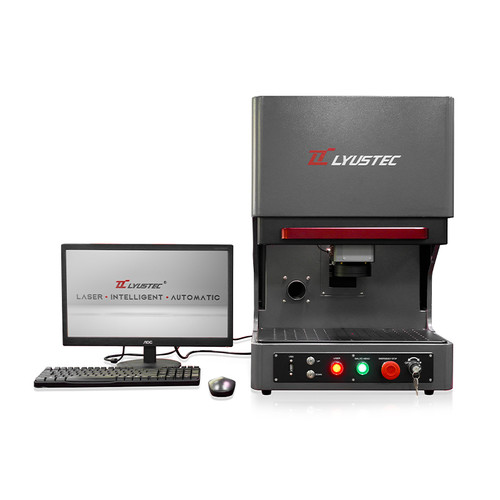

Desktop 20W Laser Marker

Desktop 20W Laser Marker


Brand Name:
LYUSTEC
Product Name:
Desktop laser engraving machine(FastMarker f2100D)


Professional custom             Lifelong maintenance

One year warranty                Free proofing


Introduction
The 20w laser marker FastMarker F-D is desktop model series, has been designed for the high-quality laser marking of small parts, medium sized components and work pieces and batches. This series is ideally suited for laser marking auto parts, electronic components, medical products, instrument, tools, metal and plastic components and general industrial products and components. The FastMarker F-D series processes small metallic and plastic components but also batches both economically and in high marking quality.
The FastMarker F-D series also is ideally suited for manufacturers with low volume requirements or where space constraints demand an efficient solution. Optional for different marking area and laser power, meet different process requirements.The machine can also be cart mounted for mobility throughout a user's facility.

20w laser marker

20w laser marker

20w laser marker




Supply (Depends on work space and laser system)
Power Consumption :Depends on integrated laser system above listed fiber lasers: 400 VAC
Electrical Requirements :L / N / PE 100 – 240 VAC, 50 / 60 Hz
Temperature: 50 – 104ºF | 10 – 40ºC
Humidity: 5 – 85 %, non-condensing


Dimensions
Footprint:697.5 in | 0.217 m²
(L × W × H):18.11 in ×27.36 in× 26.77 in | 460mm × 695mm × 680mm
IP Rating:Housing IP43, Supply unit IP21
Laser Class:Laser class 1 (according to DIN EN 60825-1)


Scope of delivery
Integrated Z-axis
Configurable laser system
Laser marking software MacMark


Axes programmable z-axis
Travel:9.4 in | 240 mm
Travel Speed:up to 0.13 in / s |3.3 mm / s


Lifting door
Manual opening
Max. doorway 9.05 in (230 mm)


User interfaces

  • Laser marking software MacMark (on separate, internal)

  • Operation via a monitor with keyboard and mouse / touch screen monitor

  • USB interface

Advantage

Design
Independent patent design industrial desktop workstation with automatic Z axis for a flexible and movable use.

Safety

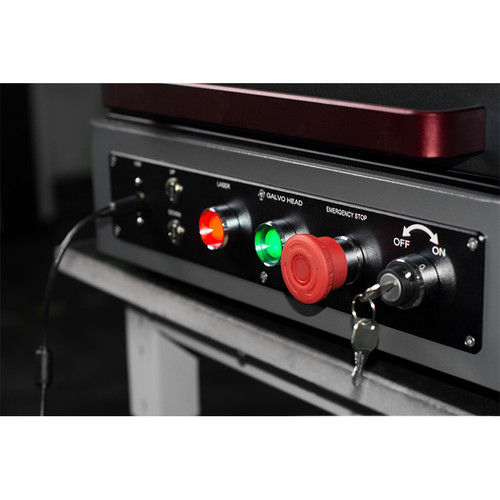

Fully equipped Germany Siemens electrical system, machine complies with EU safety regulations (performance level D)

Flexibility
Small and compact, with automatic Z axis and 3 sides door free space, marking of a large variety of parts from small to big parts, from simple to complex shapes.

Ergonomics
Wide and easily opening door for comfortable loading components, small space occupation, air-cooled laser source, height adjustable worktable and rotary clamps.

Performance
Equipped with high quality fiber lasers with strong beam quality and high efficiency galvo head with dual red light positioning system, fast focus and precise positioning, improve accuracy and speed at work.

Reliability
Using built-in DSP chip set, equipped with industrial embedded operating system, running MacMark laser marking software, while ensuring superior performance, the equipment is more stable and reliable.

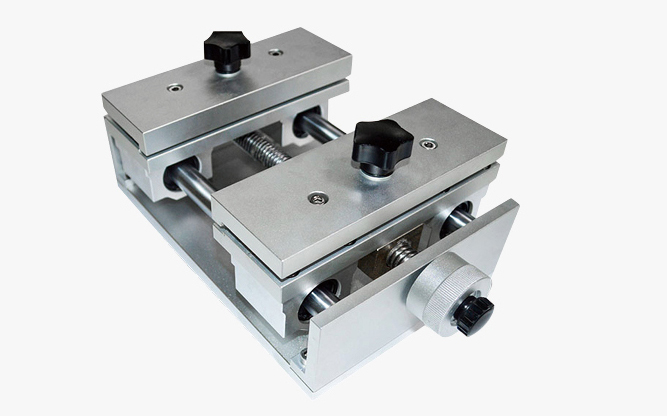

Options / Accessories

300x200

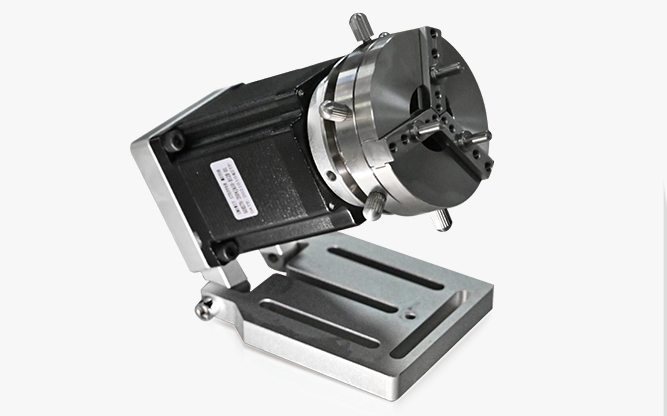

Mini rotary device

300x200

Cutting plate

300x200

Exhaust systems

300x200

Accuracy package

Applicable Material
Suitable to all kinds  of metal and partial nonmetallic material, High hardness alloy, oxide, electroplating, coating, ABS, epoxy resin, oil film, engineering plastics, etc.


Applicable Industry
Widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools,sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.

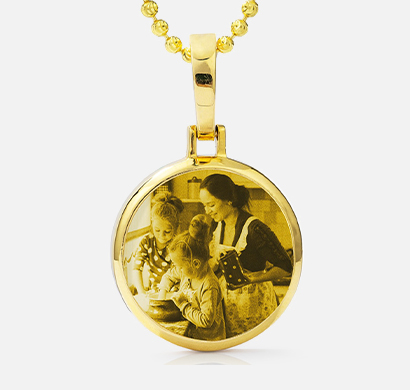

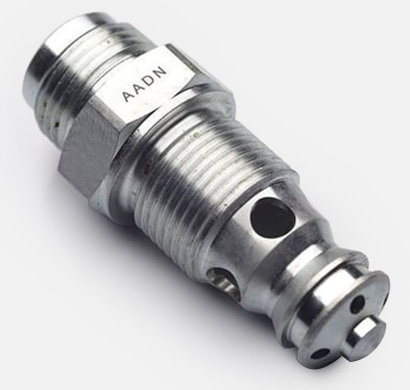

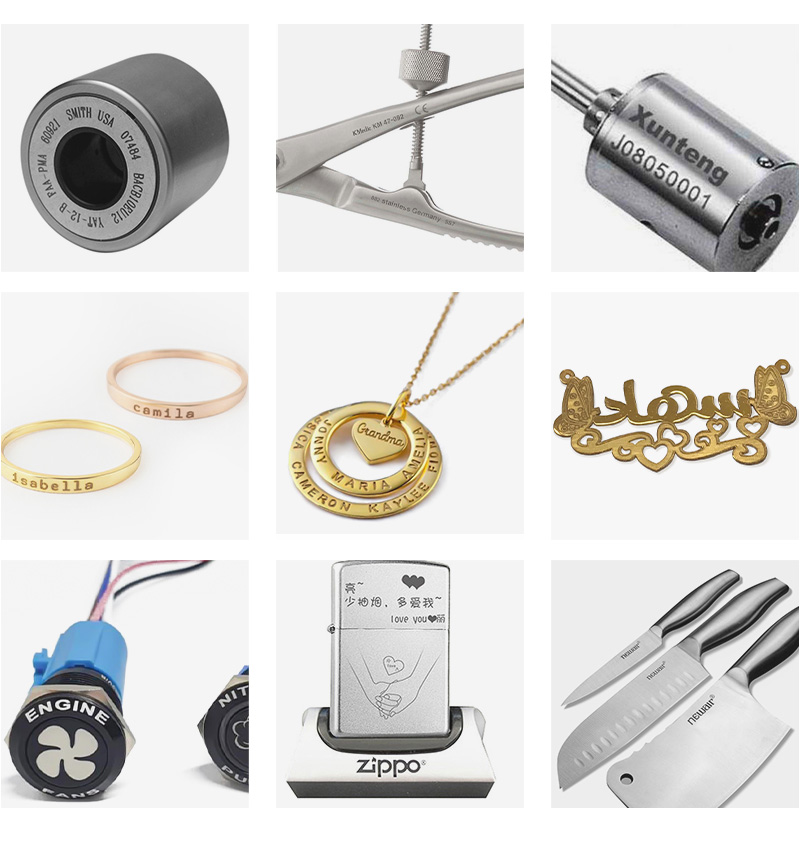

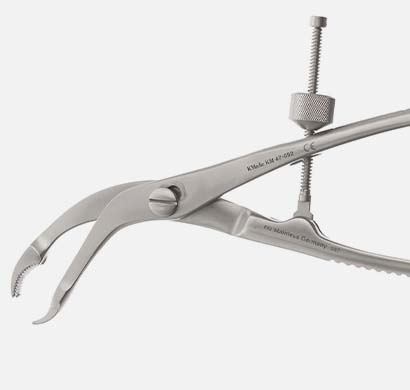

 Sample Display






Please watch the video


Mold

FASTMARKER
F2100D
FASTMARKER
F3100D
FASTMARKER
F5100D

Laser Type

Fiber

Laser Power

20W 30W 50W

Wavelength

1064nm

Dimensions (L × W × H)

460 mm (18.11 in) × 695 mm (27.36 in) × 680 mm (26.77 in)

Frequency

Up to 10 - 80 Khz

Marking Speed

Up to 10000 mm / s (393,7 in / s)

Z Axis Type

Motorized

Operating Temperature

10-40ºC

Marking Area - Available Lenses

F100: 70 mm (2.75 in) ×70 mm (2.75 in)
Optional:
F160: 110 mm (4.33 in) × 110 mm (4.33 in)
F254: 175 mm (6.89 in) × 175 mm (6.89 in)

Z Axis Travel

238mm (9.37 in)

Door Type

Manual

Communication Interfaces

4 x USB; Terminal Block 2I / 3O; (Standard)
Laser Safety Dedicated I / O; RS232; Ethernet TCP / IP

Laser Safety Classification

Class 1 Door Closed / Class 2M Door Open (Aiming Diode)

Power Consumption Rate

< 800W

Machine Net Weight

70Kg (154.323 lbs)

Software

MacMark

Rated Voltage

100 - 240 VAC, 50/60 Hz
