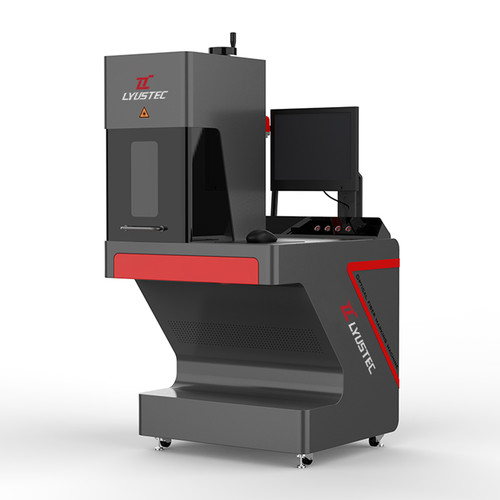

Fiber Laser Engraver Machine F2160

Fiber Laser Engraver Machine F2160


Brand Name:
LYUSTEC
Product Name:
Fiber Laser Engraver Machine (full protective cover)


Professional custom             Lifelong maintenance

One year warranty                Free proofing


Introduction:

The FastMarker F series are developed for efficient laser marking of metals and some nonmetal materials along the industrial production chain, like plastic parts, electronic components, watch and clock, medical device, IC card, kitchen and bathroom etc. This model has a full range of protection devices to improve safety during operation. They offer the perfect combination of intelligent software with high quality hardware. The fiber laser engraver machine has the characteristics of small and compact size, low power consumption, up to 100,000 hours life span, continuous 24 hours working, as your best choice.


fiber-laser-engraver

fiber-laser-engraver

fiber-laser-engraver


• A comprehensive range of protection devices for maximum safety.
• Use high-quality laser source and high-speed digital galvo head.
• high laser repetition frequency.
• Performance has reached the international advance level.
• Non-contact processing, no damage to the product.
• No tool wear, good marking quality.
• Open mold die-casting to manufacture lifting frame, built-in linear guide rail, stable structure and concise design.
• Powerful and stable control system, can be optimized for various data according to different processes.
• Easy to cooperate with automation system.



Advantage

Design
Independent design patent industrial-grade workstation with automatic Z axis and safety cover.

Safety
Fully equipped Germany Siemens electrical system, machine complies with EU safety regulations (performance level D)

Flexibility
Integration into customer processes (interfaces, additional axes), Various laser systems available, Accessories and options for optimal customization.

Ergonomics
Wide and easily opening door for a comfortable loading / unloading components, small footprint, air-cooled laser source, optional mobile, height adjustable worktable and rotary clamps.

Performance
Equipped with high quality fiber lasers with strong beam quality and high efficiency galvo head with dual red light positioning system, fast focus and precise positioning, improve accuracy and speed at work.

Reliability
Using built-in DSP chip set, equipped with industrial embedded operating system, running MacMark laser marking software, while ensuring superior performance, the equipment is more stable and reliable.


Options / Accessories

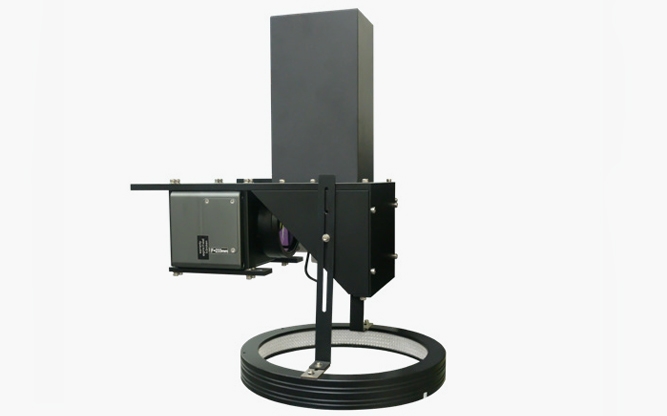

fiber-laser-engraver with ccd system

CCD laser system

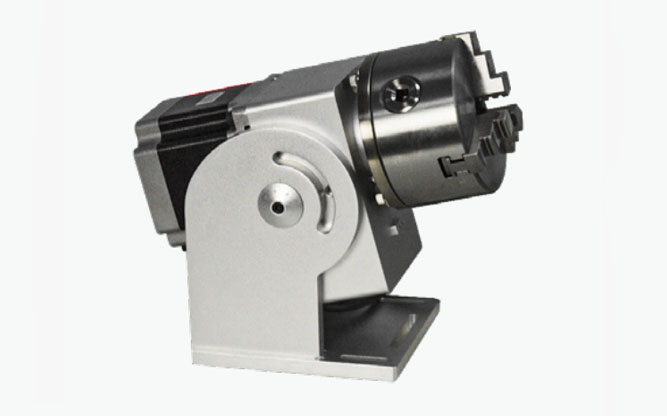

fiber-laser-engraver with rotary device

Rotary device

fiber-laser-engraver with exhaust systems

Exhaust system

fiber-laser-engraver package

Accuracy package

Applicable Material
Suitable to all kinds  of metal and partial nonmetallic material, High hardness alloy, oxide, electroplating, coating, ABS, epoxy resin, oil film, engineering plastics, etc.


Applicable Industry
Widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools,sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.

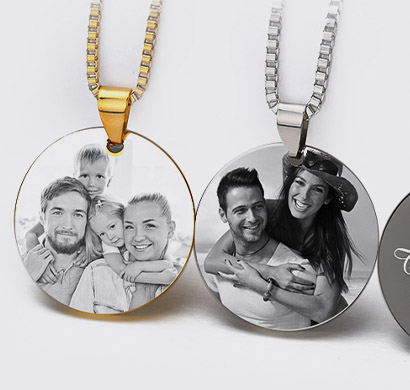

 Sample Display
fiber-laser-engraver sample display






Mold FASTMARKER
F2100
FASTMARKER
F3100
FASTMARKER
F5100
FASTMARKER
F7100
FASTMARKER
F10100
Laser Type Fiber
Laser Power  20W 30W 50W 70W 100W
Wavelength 1064nm
Dimensions (L × W × H) 650 mm (25.59 in) × 700 mm (27.56 in) × 1450 mm (57.09 in)
Frequency Up to 10 - 80 Khz
Marking Speed Up to 10000 mm / s (393,7 in / s)
Z Axis Type Motorized
Operating Temperature 10-40ºC
Marking Area - Available Lenses F160: 110 mm (4.33 in) × 110 mm (4.33 in)
Optional:
F100: 70 mm (2.75 in) ×70 mm (2.75 in)

F254: 175 mm (6.89 in) × 175 mm (6.89 in)
F330: 200 mm (7.87 in) × 200 mm (7.87 in)
F420: 300 mm (11.81 in) × 300 mm (11.81 in)
Z Axis Travel 325mm (12.79 in)
Door Type Manual
Communication Interfaces 4 x USB; Terminal Block 2I / 3O; (Standard)
Laser Safety Dedicated I / O; RS232; Ethernet TCP / IP
Laser Safety Classification Class 1 Door Closed / Class 2M Door Open (Aiming Diode)
Power Consumption Rate < 800W
Machine Net Weight 100Kg (220.46 lbs)
Software MacMark
Rated Voltage 100 - 240 VAC, 50/60 Hz
